Stock Sizes:

• Due to varying project designs, a limited inventory of fiberglass forms are available. Please contact us for availability.

Fabrication Specifications:

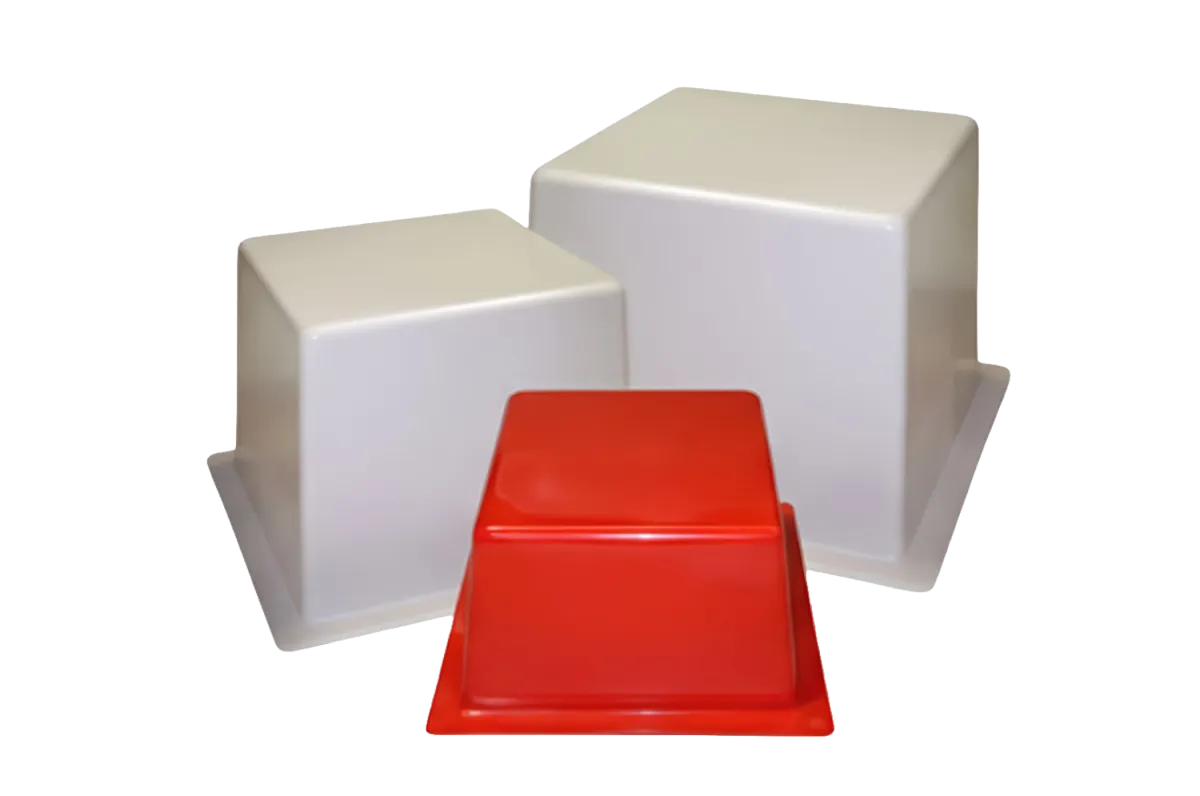

• Our fiberglass dome forms are made using a variety of manufacturing methods including resin transfer molding, as well as chopped and hand-laid manufacturing techniques.

• Sides of fiberglass forms are fabricated with a 1:8 draft on each side and a 1” radius at the top for easy stripping.

• ¼” blow hole is provided to aid in the stripping process.

• The standard flange width is 3”. Custom flanges are available.

• A smooth, durable gelcoat finish provides a Class A finish.

Installation Recommendations:

• Nail forms to the deck using the pre-drilled 3/16” mounting holes.

Stripping Recommendations:

• Apply compressed air until the fiberglass form pops loose.

  Carefully lower the fiberglass form.
